CloudFlare CName DKIM Configuration

1. Login to CloudFlare

Navigate to cloudflare.com, enter your credentials to login.

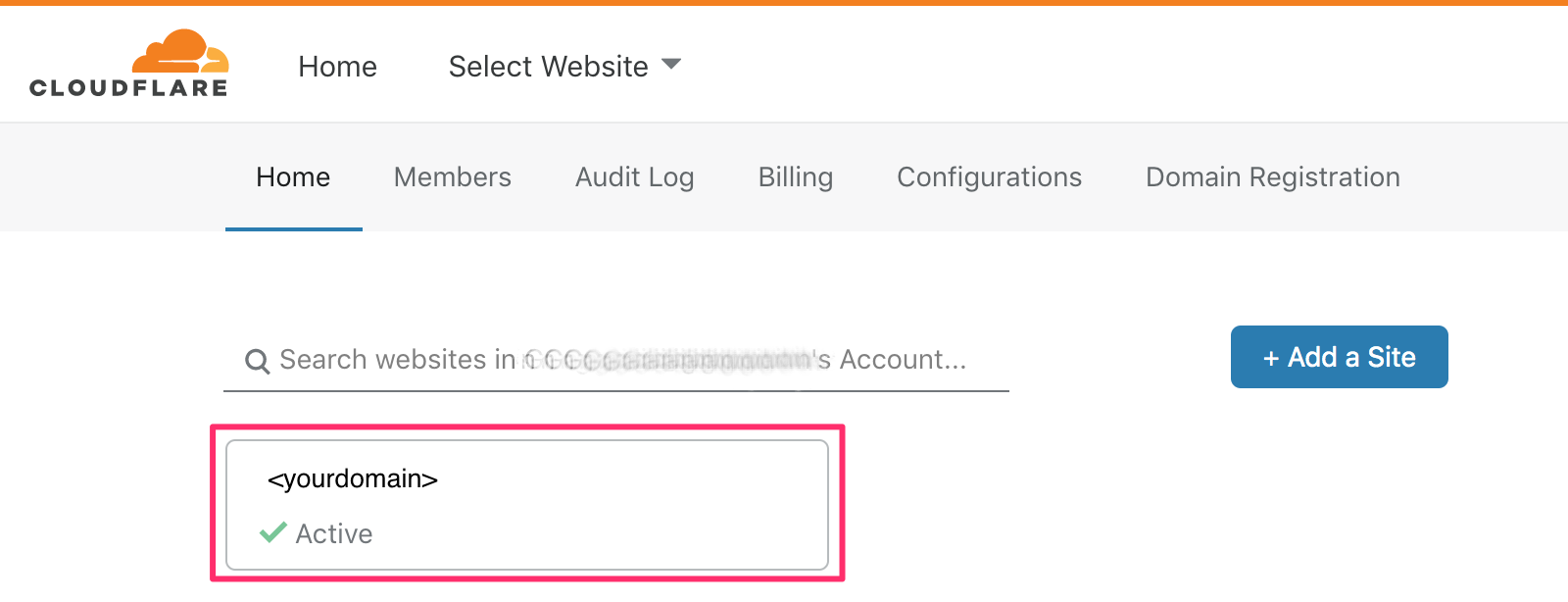

2. Locate your domain

On the CloudFlare dashboard's home page, find your domain you want to add the DKIM record to, then click.

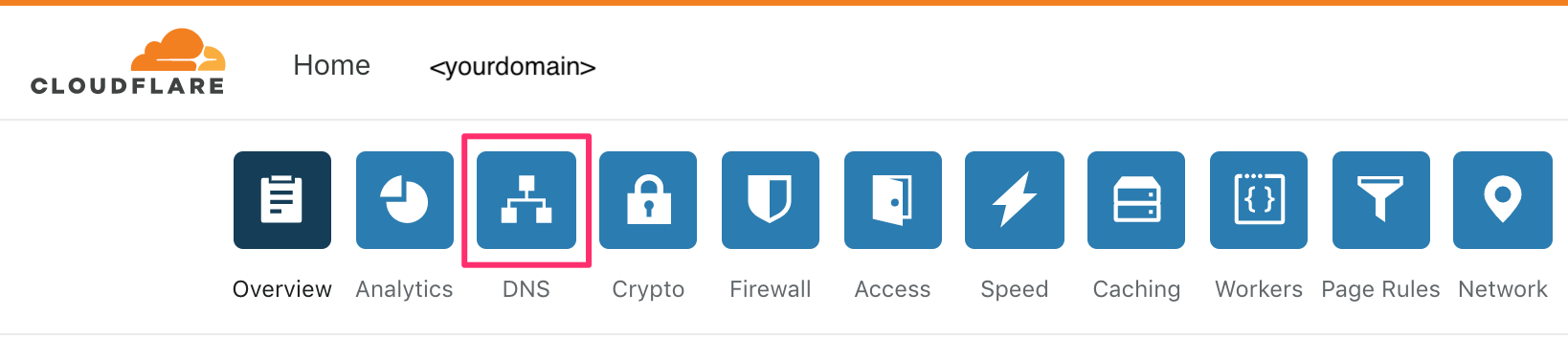

3. Manage DNS

Select the DNS button.

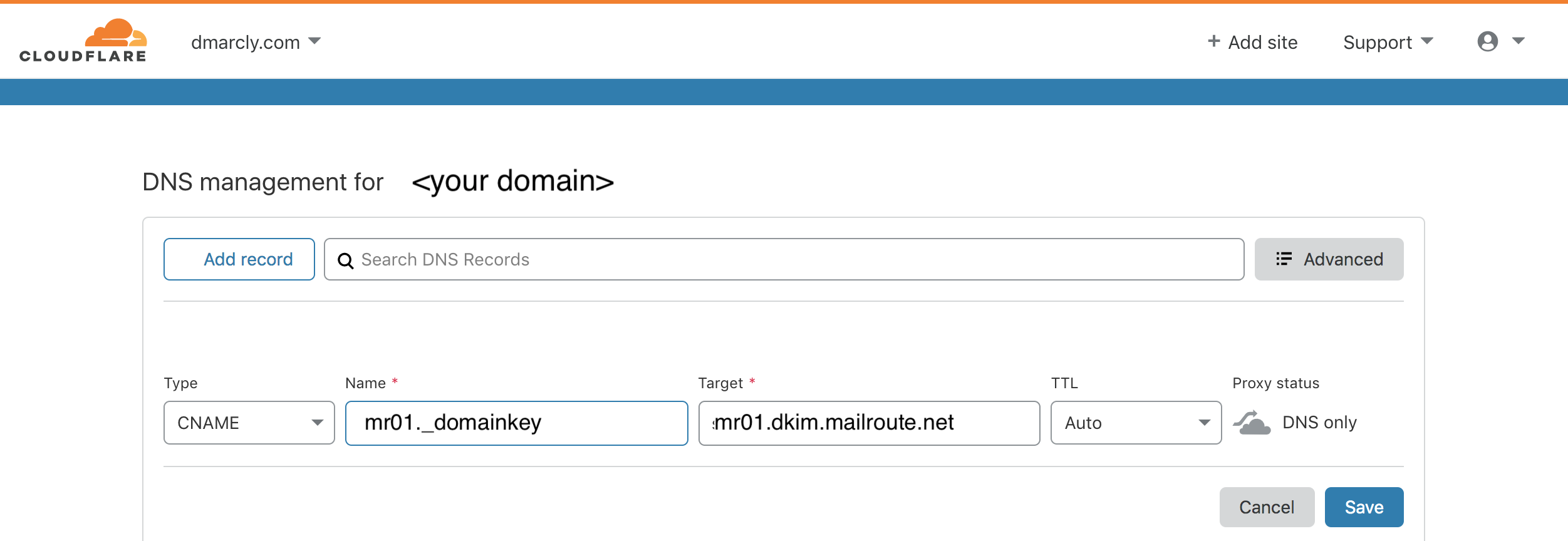

4. Create the record entry

Enter the settings for your DKIM record:

In the Type drop down menu select CNAME

In the 'Name' tab add:   mr01._domainkey

In the Target tab add: mr01.dkim.mailroute.net

Set TTL to auto

Click the Save button and your records are now added!

Repeat Step 4 for mr02._domainkey and mr03._domainkey

If you have any questions regarding the instructions please contact support@mailroute.net
